3 HP Centrifugal single impeller CB 303/A – 11100GPH – 220/460V
5/5
3 HP Centrifugal single impeller CB 303/A – 11100GPH – 220/460V
Additional information
| Phase | Single Phase |
|---|---|
| Self-Priming | Non Self-Priming |
| Voltage | 220/460V |
| Horsepower | 3 |
| Material | Cast Iron |
| AC Voltage | 230/460 volts |
| Category AC Pumps | Centrifugal Pumps |
$1,072.99
- Can lift clean water an other non-aggressive liquids
- Great for water supply, spraying, flow irrigation and high pressure systems
- Cast Iron Impeller
Estimated Delivery Time: 3 – 5 Business Days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
The Speroni CB 303/A Centrifugal irrigation pumps with single impeller. Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 35°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 M
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.
Technical Specifications
| Model | CB 303/A |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 78.4lb |
| Port Size (in.) | 3″ & 3″ |
| Maximum Flow (GPH) | 11100 GPH |
| Maximum Head (ft) | 72ft |
| Horsepower | 3HP |
| Volts | 220V – 60Hz |
| Suction Port (in.) | 3″ |
| Discharge Port (in.) | 3″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 19.3″ x 9.5″ x 12″ |
| Product Weight (lbs.) | 73.4lbs |
Dimensions
| Type | Dimensions | Dimensions | Weight | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | H1 | N | DNA | DNM | P | L | H | lb | |
| CBM 303/A | 4″ | 2.2″ | 17″ | 8.3″ | 6.3″ | 0.5″ | 8.5″ | 12″ | 4.7″ | 3″ | 3″ | 3″ | 10.2″ | 20″ | 13.6″ | 64 |

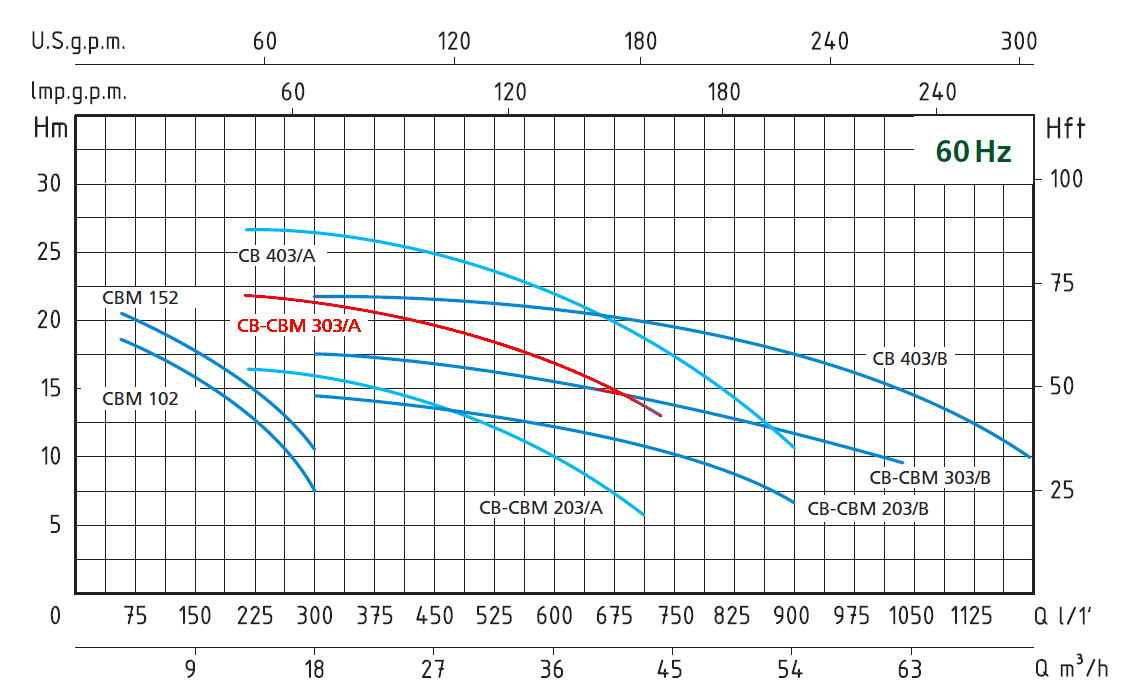

Performance Curve
Performance Table
| Type | Nominal Power | Input Power | Amperage | Capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220V – 60Hz | HP | KW | kW | 1 x 220v | GPM | 13.2 | 26.4 | 53 | 79 | 106 | 132 | 185 | 238 | 264 | 317 |
| CBM 303/A | 3 | 2.2 | 3.3 | 15 | lt/1′ | 50 | 100 | 200 | 300 | 400 | 500 | 700 | 900 | 1000 | 1200 |
| Head (ft) | 72 | 69 | 66 | 61 | 43 | ||||||||||
Additional information
| Phase | Single Phase |
|---|---|
| Self-Priming | Non Self-Priming |
| Voltage | 220/460V |
| Horsepower | 3 |
| Material | Cast Iron |
| AC Voltage | 230/460 volts |
| Category AC Pumps | Centrifugal Pumps |
