Gol Pumps 3.5″ Thin Submersible Well Pump - 76Ft - 1920 GPH - 3 Wire - 1/2HP

Gol Pumps 3.5″ Thin Submersible Well Pump - 76Ft - 1920 GPH - 3 Wire - 1/2HP

Share on facebook
Share on twitter
Share on linkedin
  • Water supply from wells and reservoirs
  • Comes with overload and capacitor box
  • Rewindable motor

Estimated Delivery: 3-5 Business Days

$303.08

Clear

This 3.5″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 76 feet of head and is a great fit for 4″ diameter wells.

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3.5″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

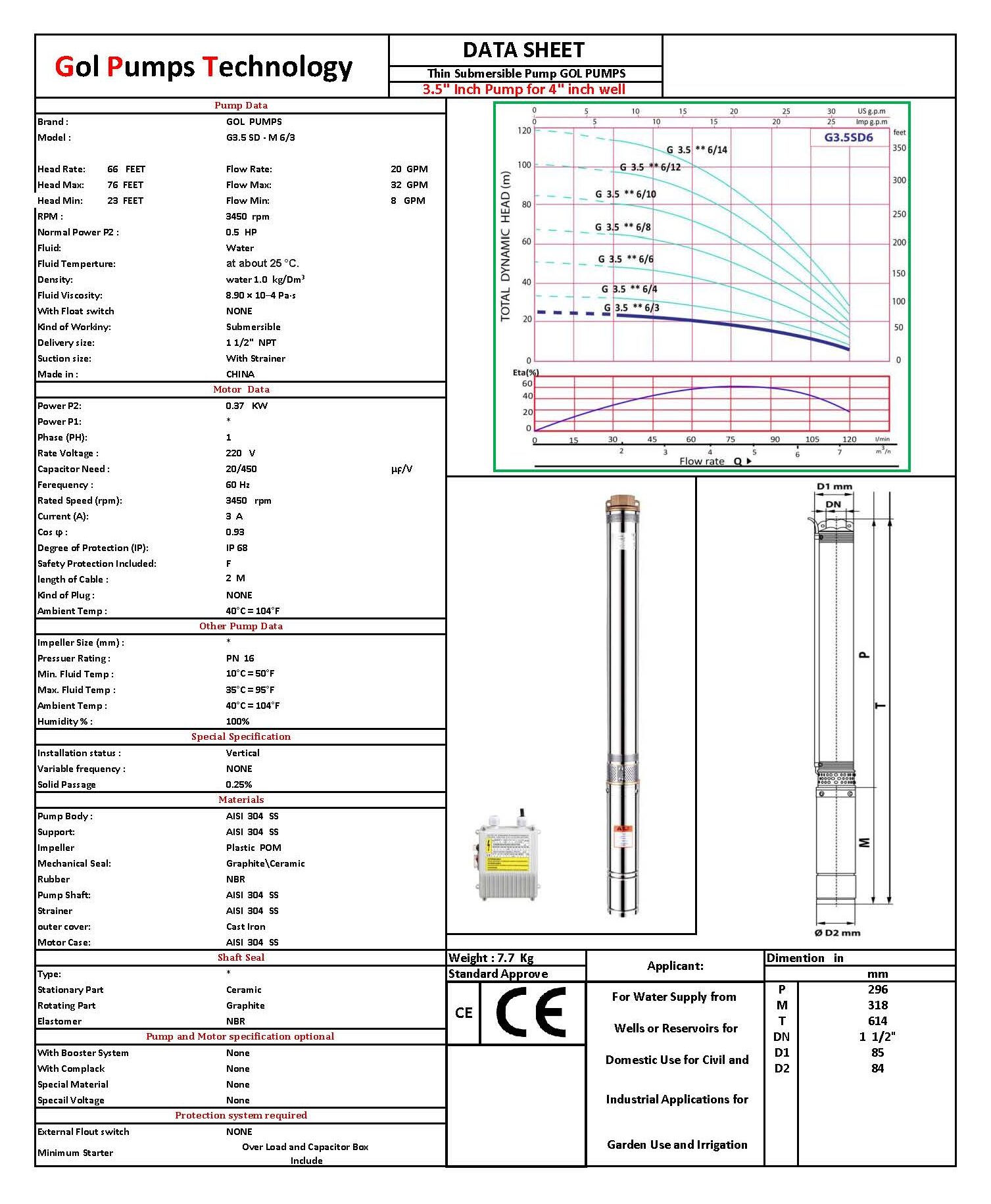

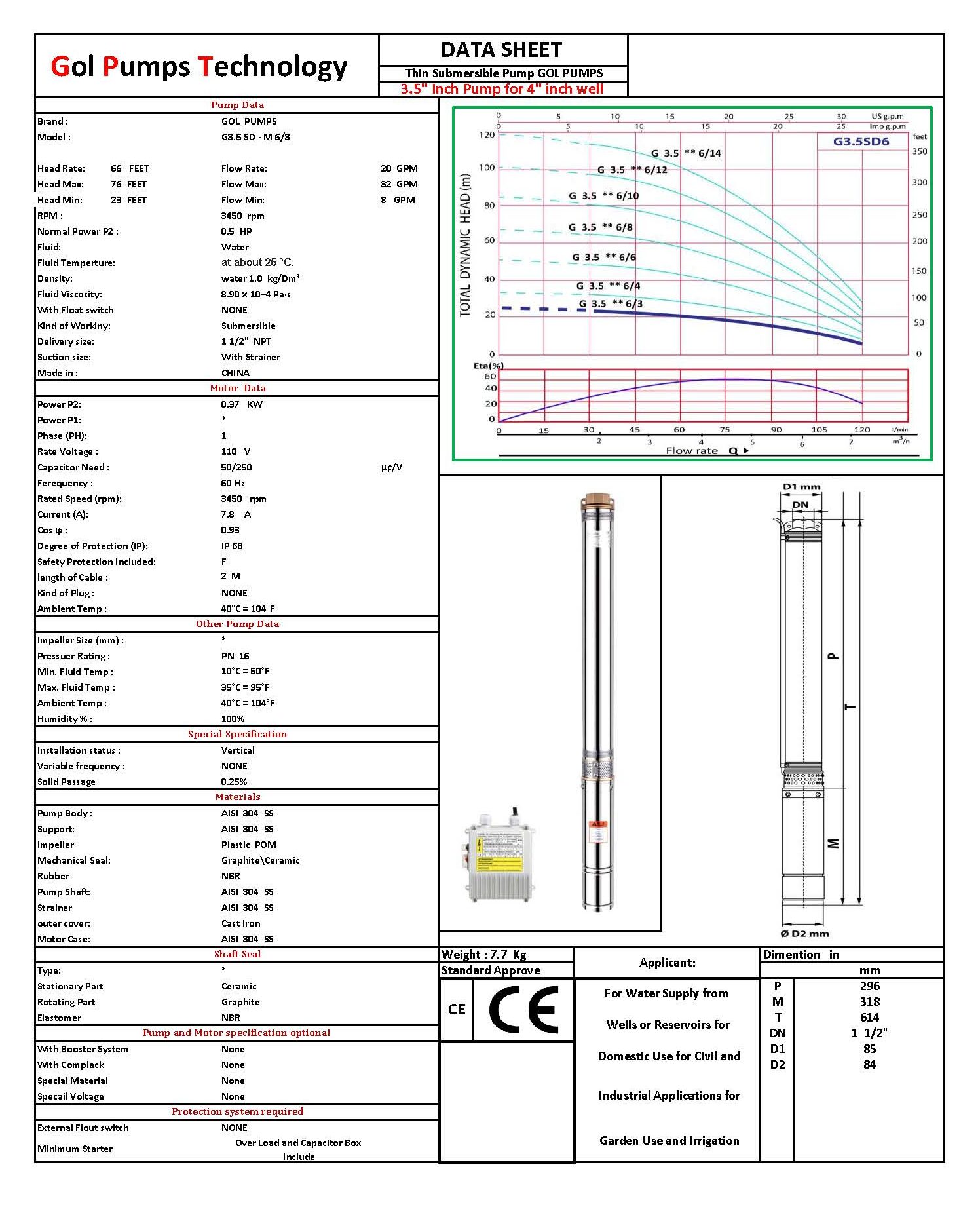

Technical Specifications

Pump TypeThin Submersible Pump
Pump BrandGOL Pumps
Pump Model3.5SDM6/3
Warranty1 Year
Maximum Head76ft
Minimum Head23ft
Maximum Flow1920 GPH
Minimum Fluid Temperature50°F
Maximum Fluid Temperature95°F
Maximum Ambient Temperature104°F
Discharge1.5″ NPT
Pump MaterialStainless Steel 304
Pump Diameter3.5″



Voltage

110V, 220V

Voltage

,

Material

Stainless Steel 304

Self-Priming

Phase

Discharge Port

1.5"

Brand

Gol Pumps
