Gol Pumps 3″ Thin Submersible Well Pump – 356Ft – 1740 GPH – 3 Wire – 2HP

5/5

Write a Review

Gol Pumps 3″ Thin Submersible Well Pump – 356Ft – 1740 GPH – 3 Wire – 2HP

Thin Submersible Pump
Free Shipping

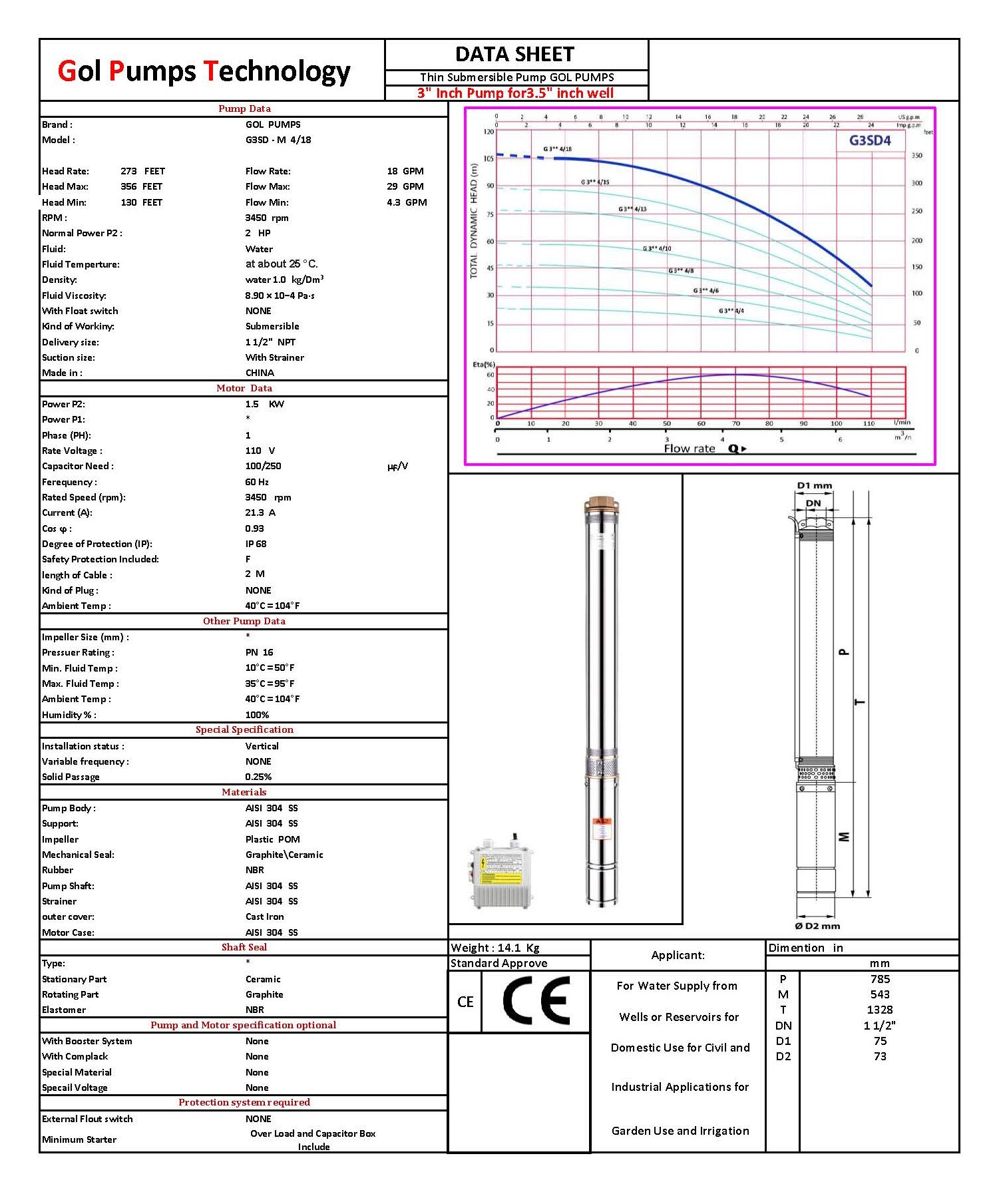

G3SDM4 18 110 DATA SHEET

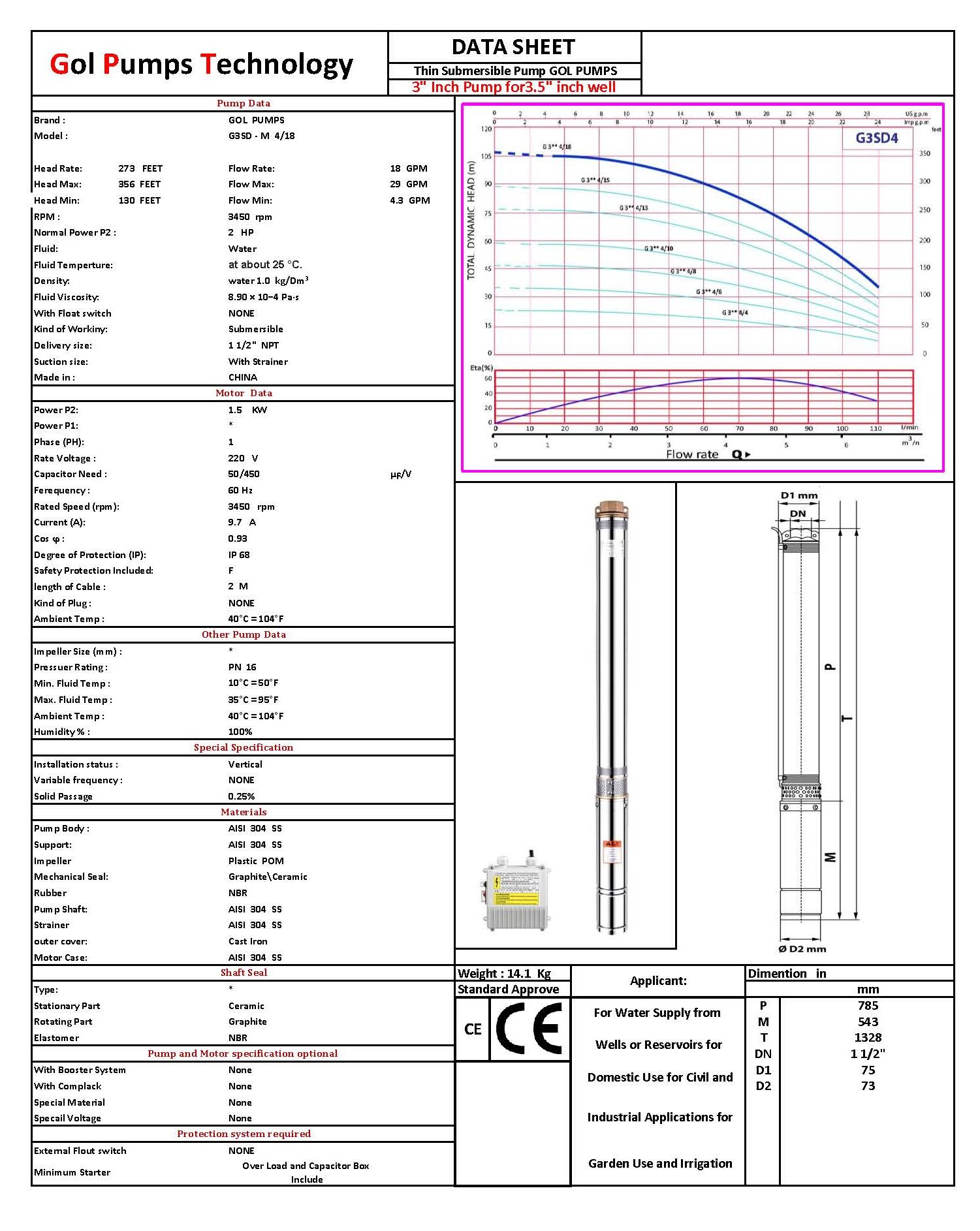

G3SDM4 18 220 DATA SHEET
Submersible Pumps Control Box
SKU N/A Categories , , , , Tags , ,

Additional information

Voltage

110/115 volt, 220/230 volt
AC/DC Pumps

AC
Brand

Gol Pumps
AC Voltage

110/220 Dual
Category AC Pumps

Thin Submersible Well
Well Diameter (Inch)

3"

$485.99

This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 356 feet of head and is a great fit for 3.5″ diameter wells.

  • Water supply from wells and reservoirs
  • Comes with overload and capacitor box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • For civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906



Estimated Delivery: 3-5 Business Days

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Specifications

Pump Type Thin Submersible Pump
Pump Brand GOL Pumps
Pump Model 3SDM4/18
Warranty 1 Year
Maximum Head 356ft
Minimum Head 130ft
Maximum Flow 1740 GPH
Minimum Fluid Temperature 50°F
Maximum Fluid Temperature 95°F
Maximum Ambient Temperature 104°F
Discharge 1.25″ NPT
Pump Material Stainless Steel 304
Pump Diameter 3″



3″ GSD Total Dynamic Head

Performance Data

MODEL

P2

DELIVERY      N = 3450 1/min

1~

220V

 KW HP Q m3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6
l/min 0 10 20 30 40 50 60 70 80 90 100 110

3SD M4/18

 1.5 2

H (m)

 107 106 105 104 102 97 92 84 74 63 51 35

Dimension and Weight

Model

 DN Dimension(inch) Weight(lbs)
1~

110V/220V

 P M(s) M(t) T(s) T(t) P M(s) M(t) T(s)

T(t)
3SD M4/18

1″/1* 0.25″/1* 0.5″

 31 21.4 19.4 52.3 50 6.2 25 22 31.1 28.2





Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.
