Gol Pumps 3″ Thin Submersible Well Pump – 366 Ft – 942 GPH – 3 Wire – 1HP Motor with Splice kit
5/5
Gol Pumps 3″ Thin Submersible Well Pump – 366 Ft – 942 GPH – 3 Wire – 1HP Motor with Splice kit
Free Shipping
Additional information
| Voltage | 110/115 volt, 220/230 volt |
|---|---|
| AC/DC Pumps | AC |
| Brand | Gol Pumps |
| AC Voltage | 110/220 Dual |
| Category AC Pumps | Thin Submersible Well Pumps |
| Well Diameter (Inch) | 3" |
Unit Price
$444.21
This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 366 feet of head and is a great fit for 3.5″ diameter wells.
- Water supply from wells and reservoirs
- Comes with control box
- Rewindable motor
Applications
- For water supply from wells or reservoirs
- For domestic use
- For civil and industrial applications
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to 95°F
- Maximum sand content : 0.25%
- Minimum well diameter : 3″
Motor and Pump
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
*(Includes wire splice kit)
Estimated Delivery: 3-5 Business Days
For all products over 120 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 120 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Description

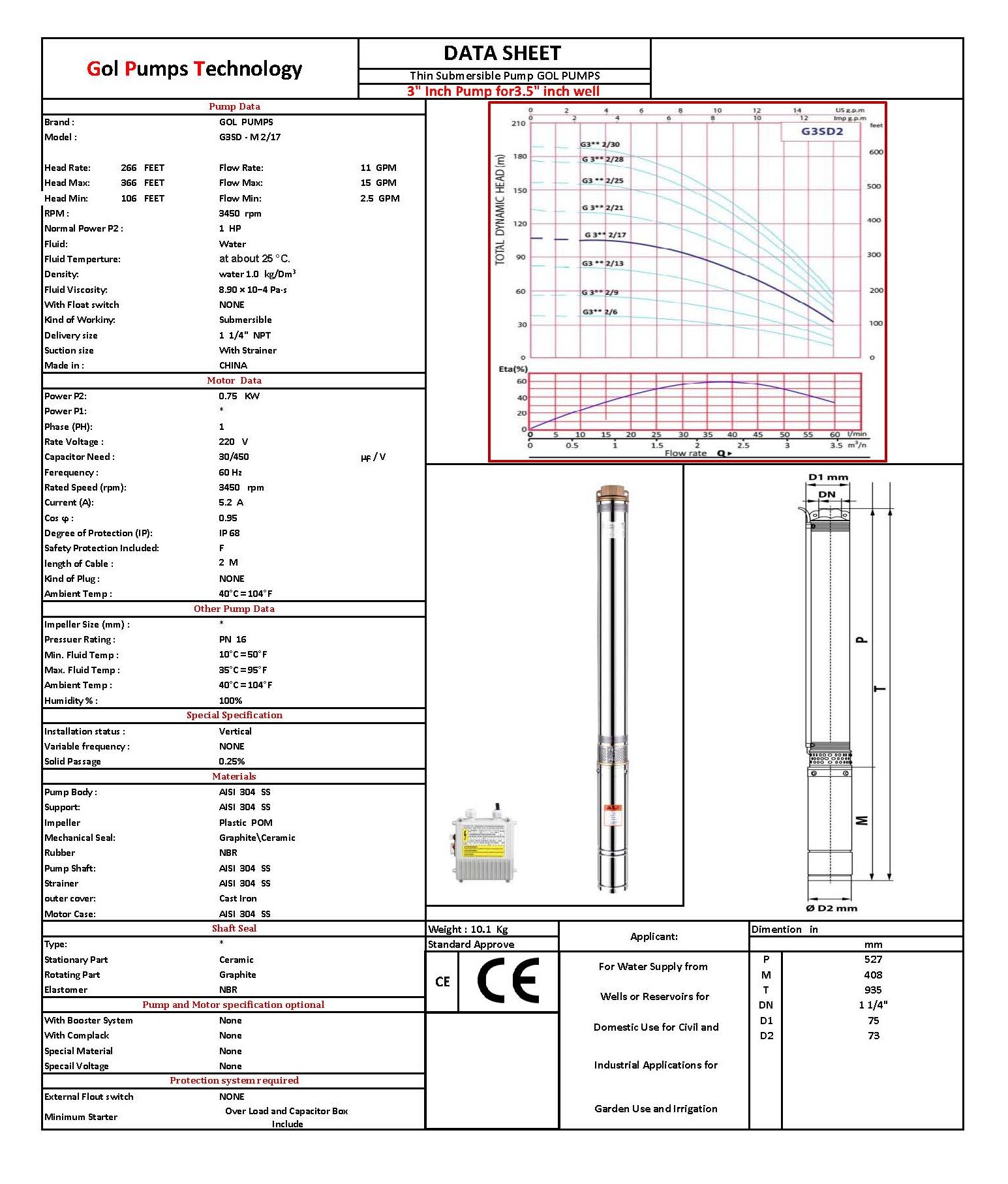

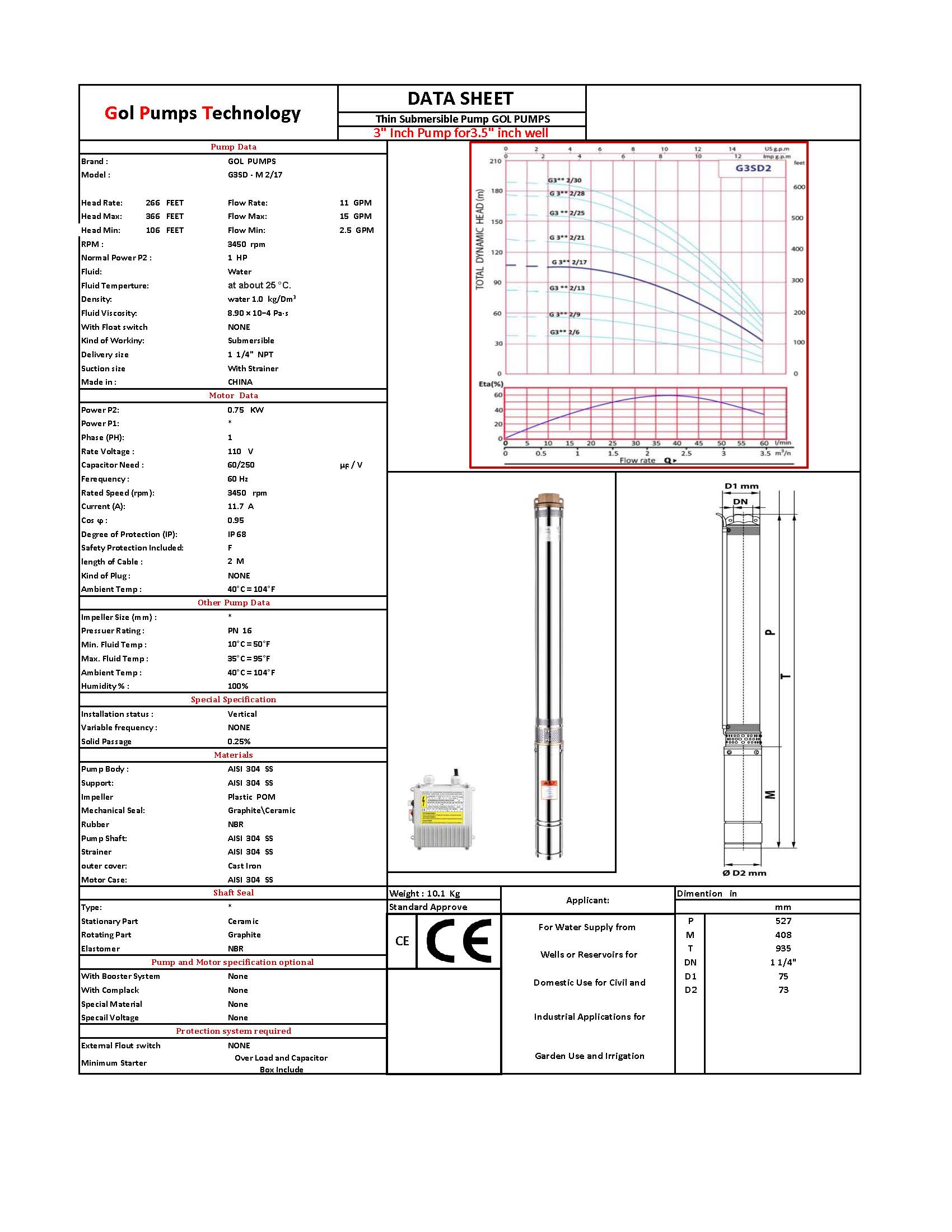

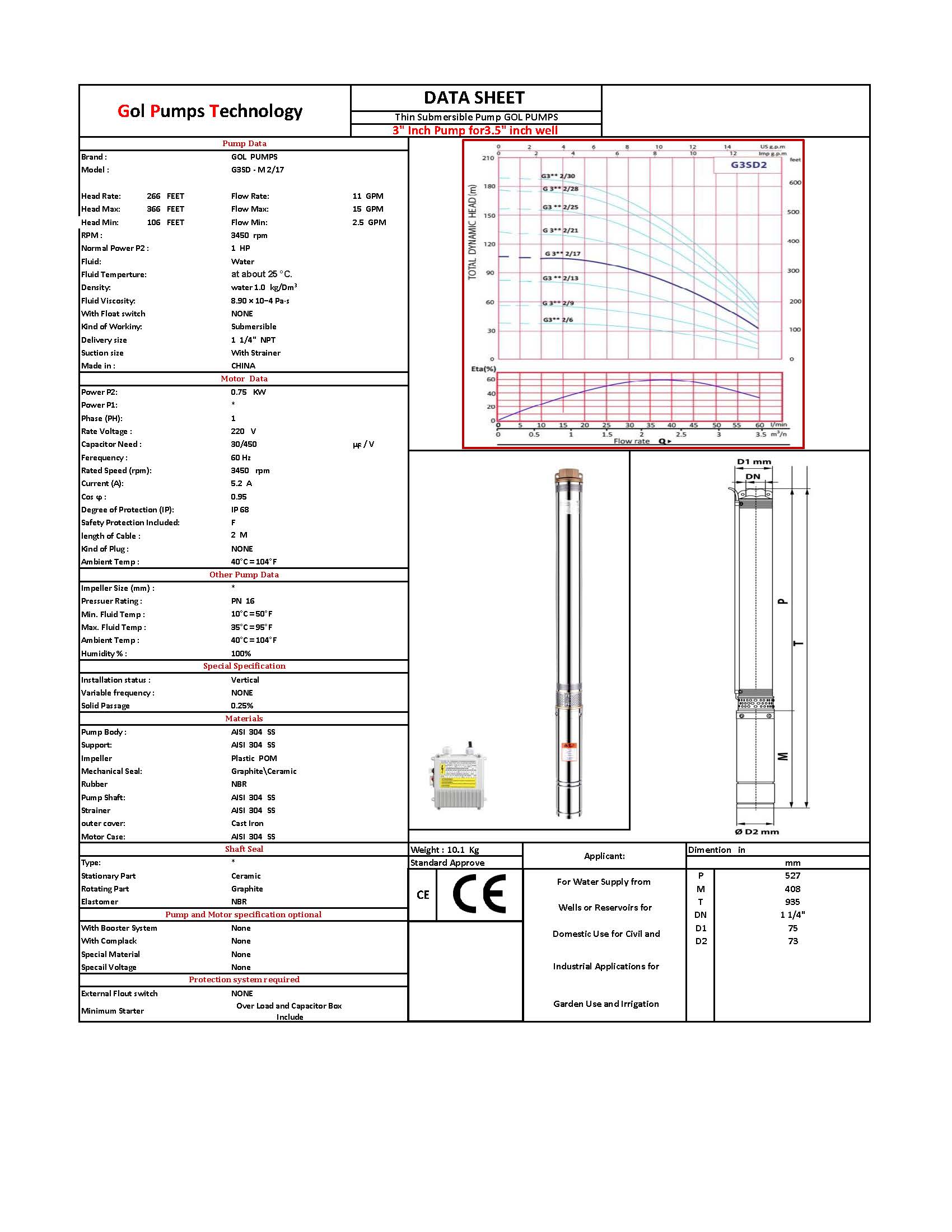

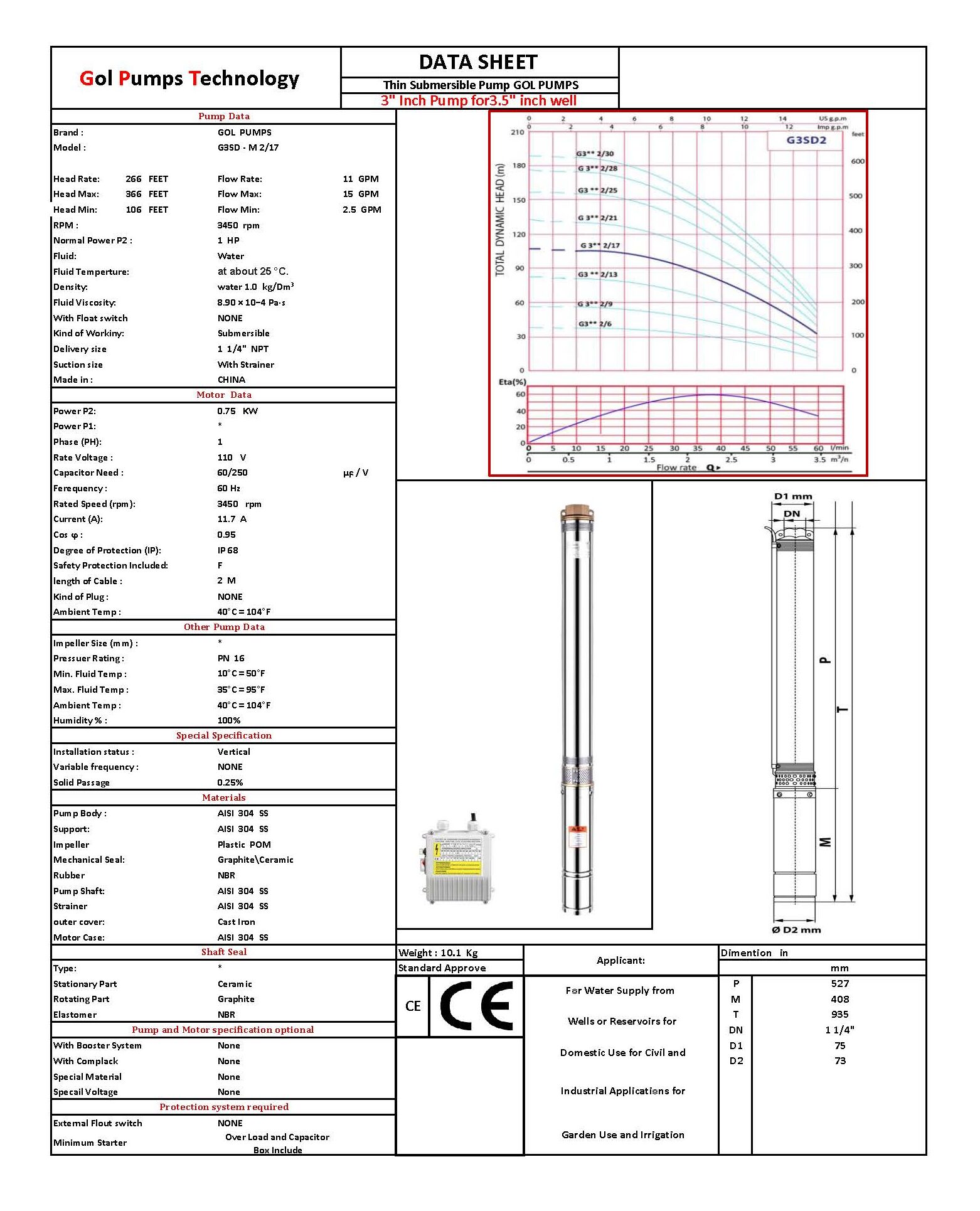

Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 3SDM0 2/17 |
| Warranty | 1 Year |
| Maximum Head | 366ft |
| Minimum Head | 106ft |
| Maximum Flow | 942 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 1.25″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 3″ |
3″ GSD Total Dynamic Head
Performance Data
|
MODEL |
P2 |
DELIVERY N = 3450 1/min |
|||||||||||||||
|
1~ 220V |
KW | HP | Q | m3/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||
|
3SD M2/17 |
0.75 | 1 |
H (m) |
107 | 106 | 105 | 104 | 102 | 98 | 93 | 87 | 78 | 68 | 57 | 45 | 31 | |
Dimension and Weight
|
Model |
DN | Dimension(inch) | Weight(lbs) | ||||||||
| 1~
110V/220V |
P | M(s) | M(t) | T(s) | T(t) | P | M(s) | M(t) | T(s) |
T(t) |
|
| 3SD M2/17 |
1″/1* 0.24″ |
21 | 16 | 14.5 | 37 | 35.2 | 6 | 16.5 | 14.1 | 22.2 | 20 |
|
Components |
Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Additional information
| Voltage | 110/115 volt, 220/230 volt |
|---|---|
| AC/DC Pumps | AC |
| Brand | Gol Pumps |
| AC Voltage | 110/220 Dual |
| Category AC Pumps | Thin Submersible Well Pumps |
| Well Diameter (Inch) | 3" |
