Gol Pumps 3″ Thin Submersible Well Pump - 416Ft - 1080 GPH - 3 Wire - 1.5HP

Voltage

,

AC/DC Pumps

Brand

Gol Pumps

AC voltage

110/220 Dual

category ac pumps

Thin Submersible Well

Gol Pumps 3″ Thin Submersible Well Pump - 416Ft - 1080 GPH - 3 Wire - 1.5HP

  • Water supply from wells and reservoirs
  • Comes with overload and capacitor box
  • Rewindable motor

Estimated Delivery: 3-5 Business Days

$527.64

Clear
Add to Cart

This 3″ thin well submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 416 feet of head and is a great fit for 3.5″ diameter wells.

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

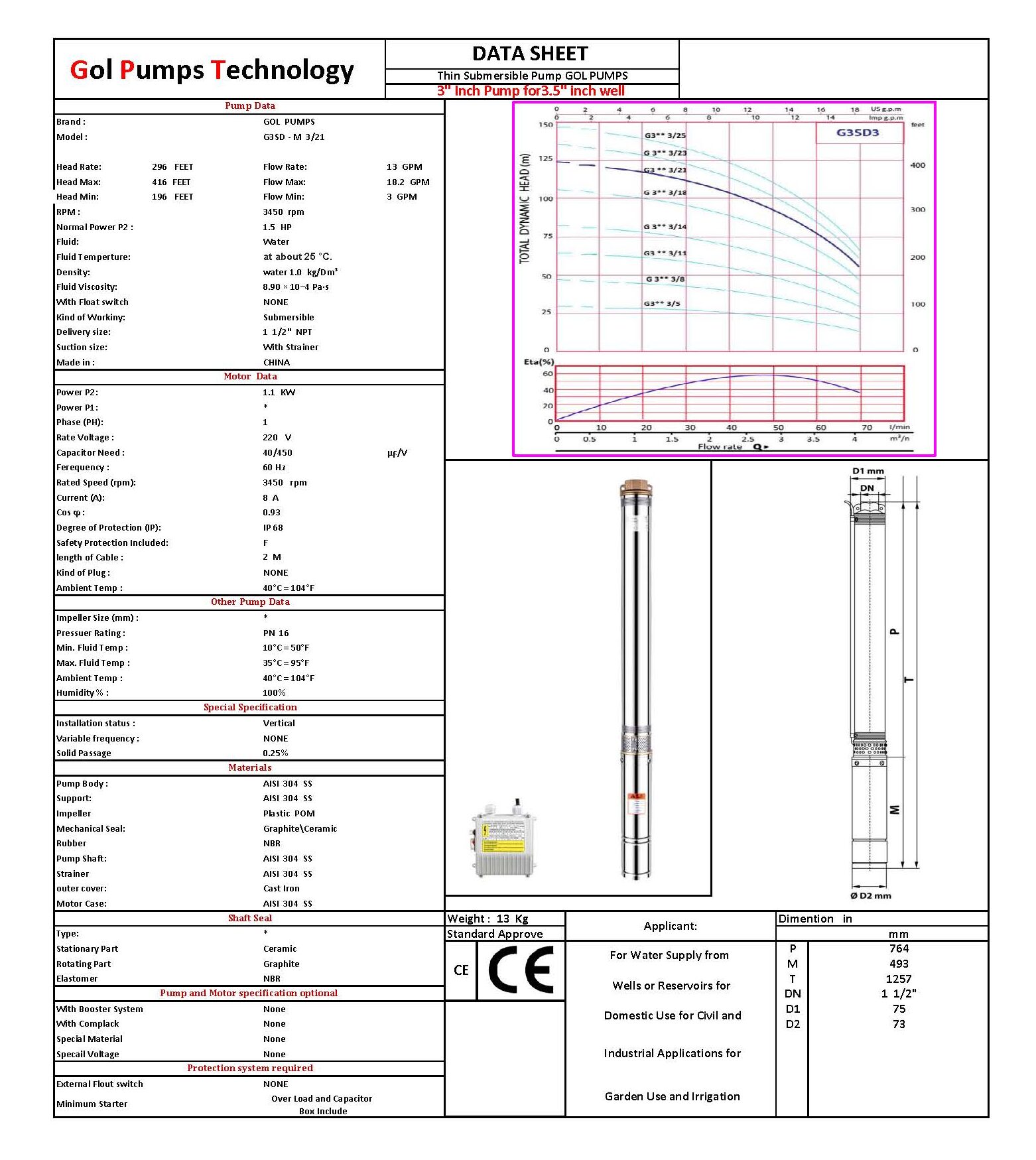

Technical Specifications

Pump TypeThin Submersible Pump
Pump BrandGOL Pumps
Pump Model3SDM3/21
Warranty1 Year
Maximum Head416ft
Minimum Head196ft
Maximum Flow1080 GPH
Minimum Fluid Temperature50°F
Maximum Fluid Temperature95°F
Maximum Ambient Temperature104°F
Discharge1.5″ NPT
Pump MaterialStainless Steel 304
Pump Diameter3″







Voltage

,

AC/DC Pumps

Brand

Gol Pumps

AC voltage

110/220 Dual

category ac pumps

Thin Submersible Well
