Gol Pumps 3″ Thin Submersible Well Pump - 493Ft - 1080 GPH - 3 Wire - 2HP

Gol Pumps 3″ Thin Submersible Well Pump - 493Ft - 1080 GPH - 3 Wire - 2HP

Share on facebook
Share on twitter
Share on linkedin
  • Water supply from wells and reservoirs
  • Comes with overload and capacitor box
  • Rewindable motor

Estimated Delivery: 3-5 Business Days

$538.65

Clear

This 3″ thin submersible well pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 493 feet of head and is a great fit for 3.5″ diameter wells.

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

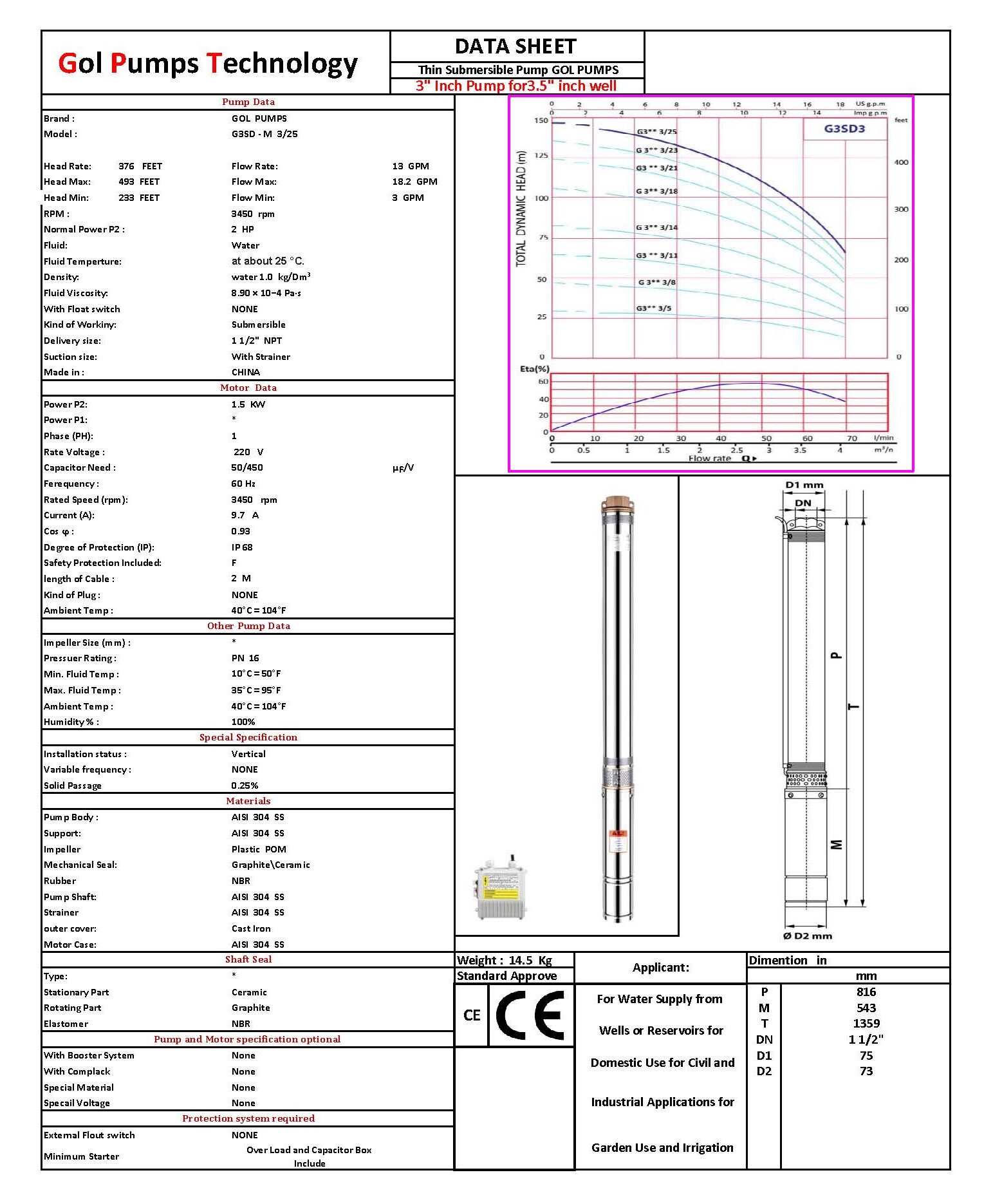

Technical Specifications

Pump TypeThin Submersible Pump
Pump BrandGOL Pumps
Pump Model3SDM3/25
Warranty1 Year
Maximum Head493ft
Minimum Head283ft
Maximum Flow1080 GPH
Minimum Fluid Temperature50°F
Maximum Fluid Temperature95°F
Maximum Ambient Temperature104°F
Discharge1.5″ NPT
Pump MaterialStainless Steel 304
Pump Diameter3″



Weight33 lbs
Voltage

110V, 220V

Voltage

,

Horsepower

2

Material

Stainless Steel 304

Phase

Brand

Gol Pumps
