Golpumps COOLANT PUMP, SPC 2-18, 1.5HP, 3PHASE, 460V

AC/DC Pumps

Category AC Pumps

Horsepower

1.5

Brand

Gol Pumps

Voltage

Phase

AC Voltage

440-480 volts

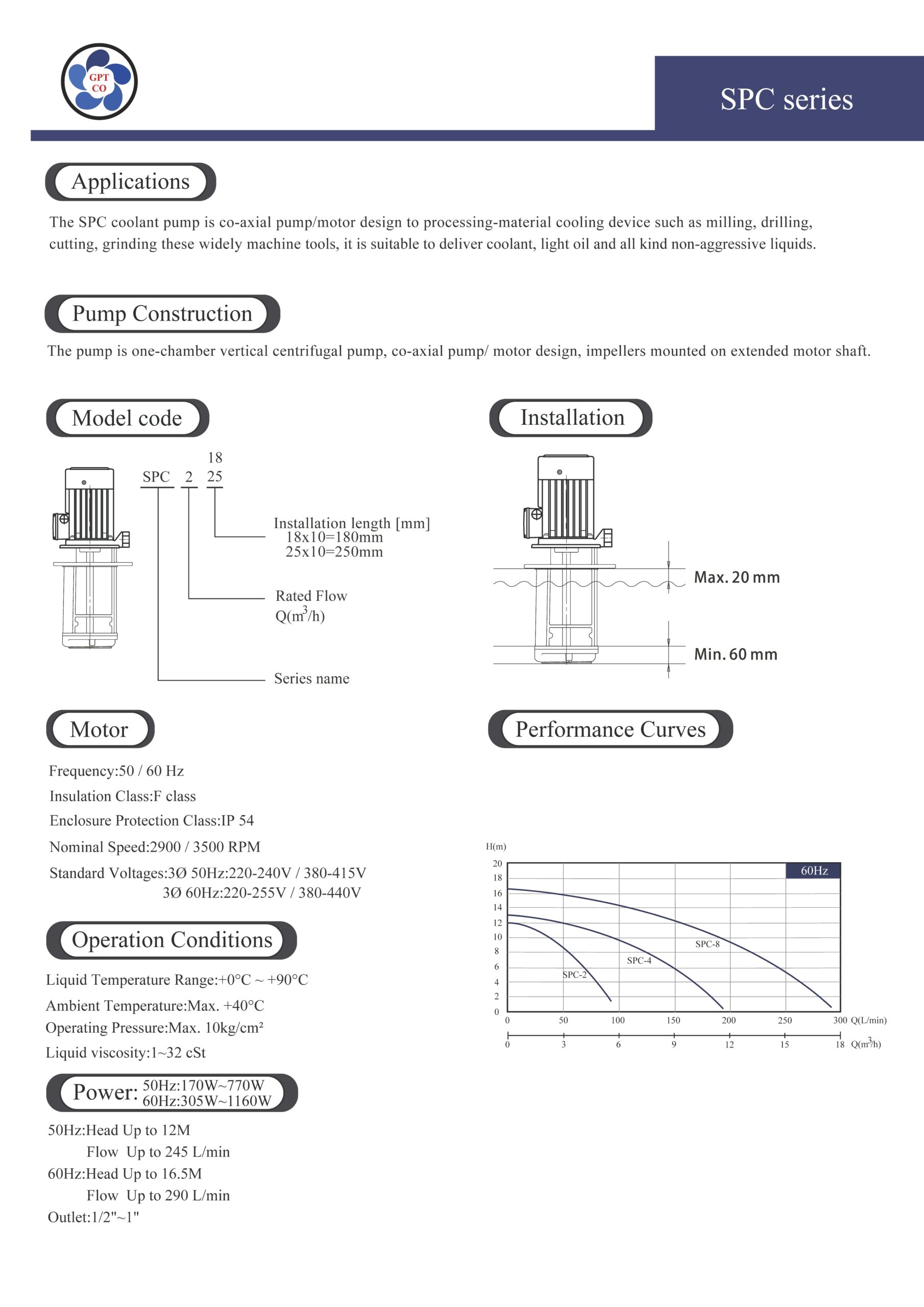

Golpumps COOLANT PUMP, SPC 2-18, 1.5HP, 3PHASE, 460V

Application

The SPC coolant pump is co-axial pump/motor design to processing-material cooling device such as milling, drilling, cutting, grinding, CNC machines and these widely machine tools, it is suitable to deliver coolant, light oil and all kind non-aggressive liquids.

Pump Construction

The pump is one-chamber vertical centrifugal pump, co-axial pump/ motor design, impellers mounted on extended motor shaft.

Motor

  • Frequency: 60 Hz
  • Insulation Class: F
  • Enclosure Protection Class: IP 54
  • Nominal Speed: 3500 RPM
  • Standard Voltages: 3Ø 60Hz 230V

Operation Conditions

  • Liquid Temperature Range: +32°F ~ +194°F
  • Ambient Temperature Max.: +104°F
  • Operating Pressure Max.: 142 PSI
  • Liquid viscosity: 1~32 cSt







Estimated Delivery Time: 3 – 5 Business Days

$299.99

Add to Cart

Application

The SPC coolant pump is co-axial pump/motor design to processing-material cooling device such as milling, drilling, cutting, grinding, CNC machines and these widely machine tools, it is suitable to deliver coolant, light oil and all kind non-aggressive liquids.



More Details:

ModelSPC 2-18
BrandGol Pumps
Manufacturer’s Warranty1 year Limited Warranty
Motor MaterialADC12
Port Size (in.)1/2″
Flow (GPH)1422
Power (W)305
Volts460V – Three phase – 60Hz
Amps0.55
Max. Total Head (ft.)39
ImpellerNYLON
Max. PSI142
PumpFC20
Discharge Port (in.)1/2″
CentrifugalYes
Dimensions L x W x H (in.)7.9 x 4.7 x 14.4
Product Weight (lbs.)21

Pump Construction

The pump is one-chamber vertical centrifugal pump, co-axial pump/ motor design, impellers mounted on extended motor shaft.

Motor

  • Frequency: 60 Hz
  • Insulation Class: F
  • Enclosure Protection Class: IP 54
  • Nominal Speed: 3500 RPM
  • Standard Voltages: 3Ø 60Hz 230V

Operation Conditions

  • Liquid Temperature Range: +32°F ~ +194°F
  • Ambient Temperature Max.: +104°F
  • Operating Pressure Max.: 142 PSI
  • Liquid viscosity: 1~32 cSt



AC/DC Pumps

Category AC Pumps

Horsepower

1.5

Brand

Gol Pumps

Voltage

Phase

AC Voltage

440-480 volts
