Immersible Coolant Vertical Multi-Stage Pump – 2700GPH, 2HP, 230V – 1PH, SBKI 5-5/5

5/5

Immersible Coolant Vertical Multi-Stage Pump – 2700GPH, 2HP, 230V – 1PH, SBKI 5-5/5

Additional information

Weight 58 lbs
Category AC Pumps

Immersible Coolant Pumps, Vertical Multistage Pumps

Brand

Gol Pumps

Horsepower

2

AC Voltage

208-220 volts, 230 volts

Phase

Single Phase

Discharge Port

1 1/4"

$1,795.99

SBKI pumps are vertical multistage centrifugal pumps especially designed for pumping of cooling lubricants for machine tools, and to be mounted on top of tanks with the pump stack immerged in the pumped liquid.

Applications

  • Cooling units
  • Grinding machines
  • Machine centers
  • Spark machine tools
  • Filtering systems
  • Milling machines
  • Boring machines
  • Drilling machines
  • Filtering systems
  • Swarf conveyors
  • Industrial washing machines

Features

  • Compact design
  • High Efficiency Reliability
  • Easy installation
  • Flexible installation length
  • Wide performance range
  • Reliability
  • Service-friendly

Motor

  • SBK is fitted with totally enclosed fan-cooled, 2-pole standard motor
  • Rated Speed: 3450rpm (60Hz)
  • Enclosure Class: IP 55
  • Insulation Class: F
  • Max. Ambient Temperature: +122°F

Pumped Liquids

  • Do not pump the explosive or aggressive liquids and the liquids should be free of fibers. The SBK pumps have the strainer in the suction chamber with inlet to prevent large particles from entering and damaging the pump.
  • In order to avoid the larger particles block the filters, we suggest to filtrate elementarily before pumping the liquids with particles.

Mechanical Seals

  • Standard Cartridge type mechanical seal made of Tungsten carbide / Tungsten carbide Viton.
  • The cartridge type mechanical seal can be replaced in minutes without special tools and without dismantling the pump.

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

Technical Data

Model SBKI 5-5/5
Brand Gol Pumps
Made In Taiwan
Manufacturer’s Warranty 1 year Limited Warranty
HP 2
Voltage – Phase 230V – Single Phase
Amps 9.6
Flow (GPH) 2700
Max. Total Head (ft.) 164
Max. PSI 72
Discharge Port (in.) RP 1 1/4
Self-Priming No
Centrifugal Yes
Dimensions L x W x H (in.) 25.8 x 6.3 x 7.1
Product Weight (lb.) 57.4

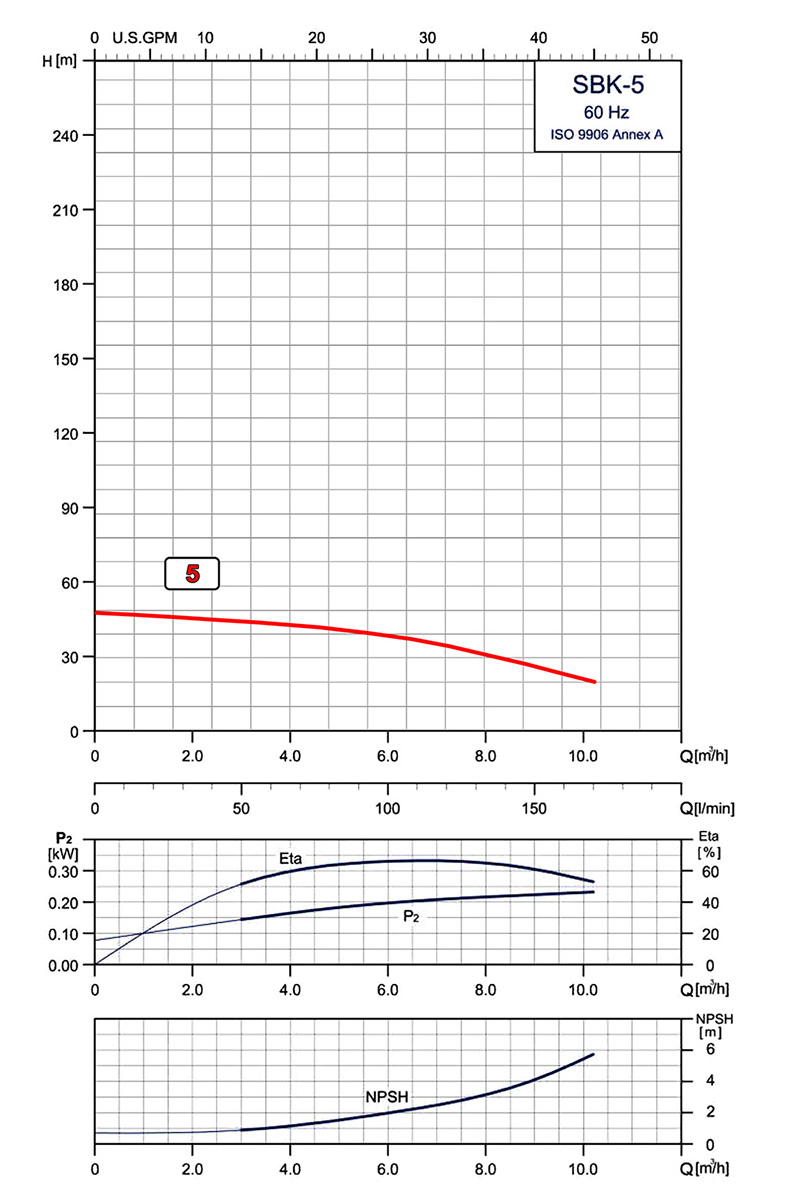

Performance Curve

Dimensions (inch)

Outlet A B C E F G H1 H2 H3 D1 D2 D3
RP 1 1/4 5.5 6.3 7.1 1.3 0.3 3.9 25.8 9.8 16 7 5.6 5.5

Parts and Materials

No Component Material AISI/ASTM
12 Chamber Complete Stainless Steel AISI 304
18 Impeller Stainless Steel AISI 304
24 Neck Ring PTFE
26 Priming Screw Stainless Steel AISI 304
34 Strainer Stainless Steel AISI 304
36 Pump Head Cast Iron ASTM 25B
37 Pump Shaft Stainless Steel AISI 431
43 Coupling
57 Shaft Seal SUUV

Installation
