These magnetic drive pumps are designed to circulate mildly corrosive acids, alkalis, solvents, brines, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump’s material of construction. The design isolates the pump mechanism from the motor with a solid wall. Liquid surrounds the pump, which has no physical connection to the motor. Magnets on both sides of the wall transmit rotary power from the motor side to the pump.
corrosion-resistant chemical transfer mag-drive pumps from Grainger can help you safely handle industrial chemicals. These seal-free pumps help eliminate seal-caused friction loss, wear, contamination and leakage. Find flooded suction pumps with high-efficiency impeller design that can allow a smaller pump to be used. Also find self-priming and straight magnetic drive pumps. Look to Grainger first when you need a high-quality chemical transfer mag-drive pump
Little Giant Magnetic Drive Pumps are designed to handle liquids such as mild acids, mild alkalis, and saltwater. The design isolates the pump mechanism from the motor with a solid wall, and helps eliminate seal-caused friction loss, wear, contamination, and leakage. Liquid surrounds the pump, which has no physical connection to the motor. Magnets on both sides of the wall transmit rotary power from the motor side to the pump
- – Bio-Diesel Generators
- – Kidney Dialysis
- – Precision Cleaning Systems
- – Acidic and alkaline liquids
|Voltage||115V– Single Phase|
|Max Flow||26.3 gpm|
|Max Head||28 ft|
|Outlet Port||1 1/2 in|
|Industry||Example of Application|
|Chemical Stockists||Transfer of various chemicals from storage tanks to smaller containers|
|Surface Treatment||Transfer, filtering and circulation of surface treatment baths|
|Food and beverage||Pumping of CIP detergent used for cleaning of pipes and other food process equipment|
|Water Treatment||Dosing of acids and alkalis used as cleaning chemicals in filtration|
|Chemical Manufacture||Pumping of chemicals in industrial detergent equipment|
|Demineralizing||Demi-water circulation and transfer in many industrial applications|
|Photo Processing||Transfer of photo develop chemicals and inclusion in processing machines|
|Liquid Crystal Manufacture||Pumping of concentrated acids and alkalis|
Magnetic heat dissipation structure
Spindle and bearing through heat diffusion hole installed in the fixed part of impeller and magnet capsule Efficient diffusion, heat dissipation, and cooling of heat generated during abnormal operation by forcibly circulating the surrounding liquid to prevent thermal deformation and melting of the resin.
All parts subject to stress such as front casing and rear casing are reinforced with ribs, We are trying to improve the mechanical strength.
Excellent corrosion resistance
The main body is CFR-ETFE, and the other wetted parts are made of excellent corrosion-resistant materials such as carbon, ceramics, and SIC, so that acid/alkali, etc. Can be used for all chemicals.

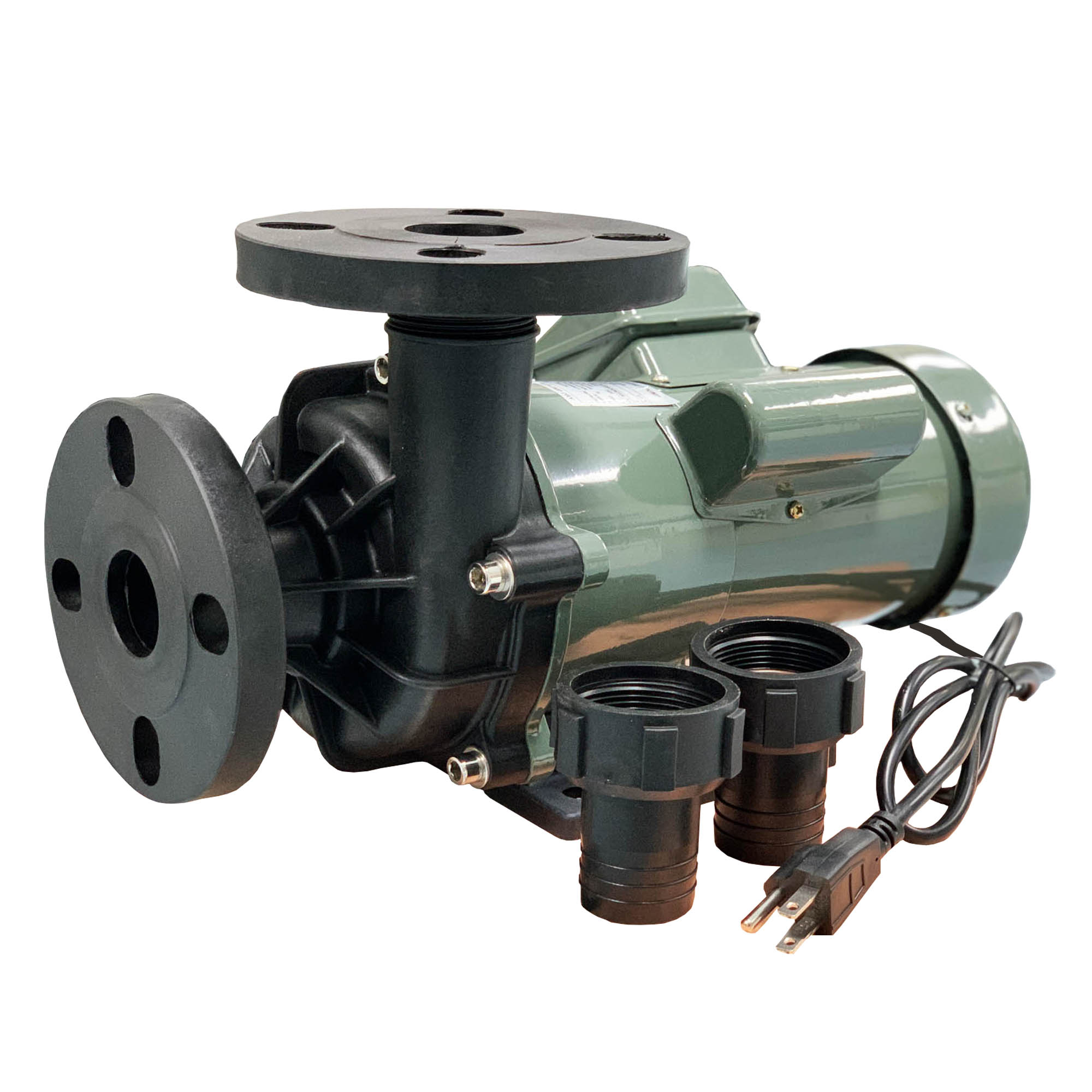

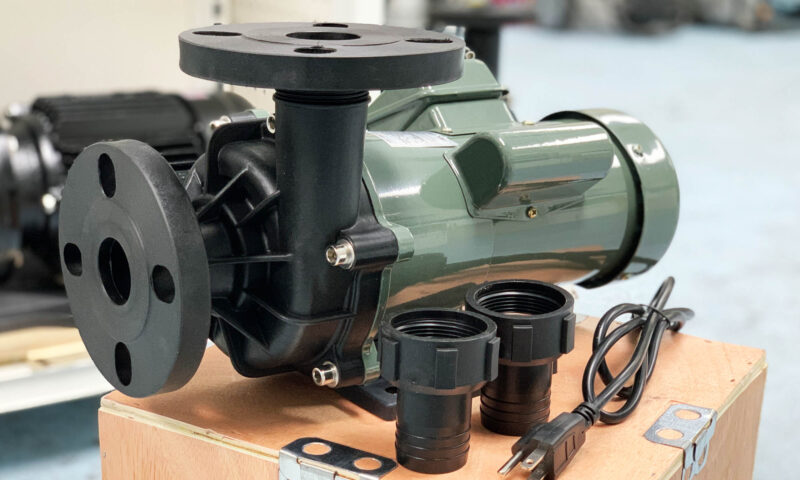

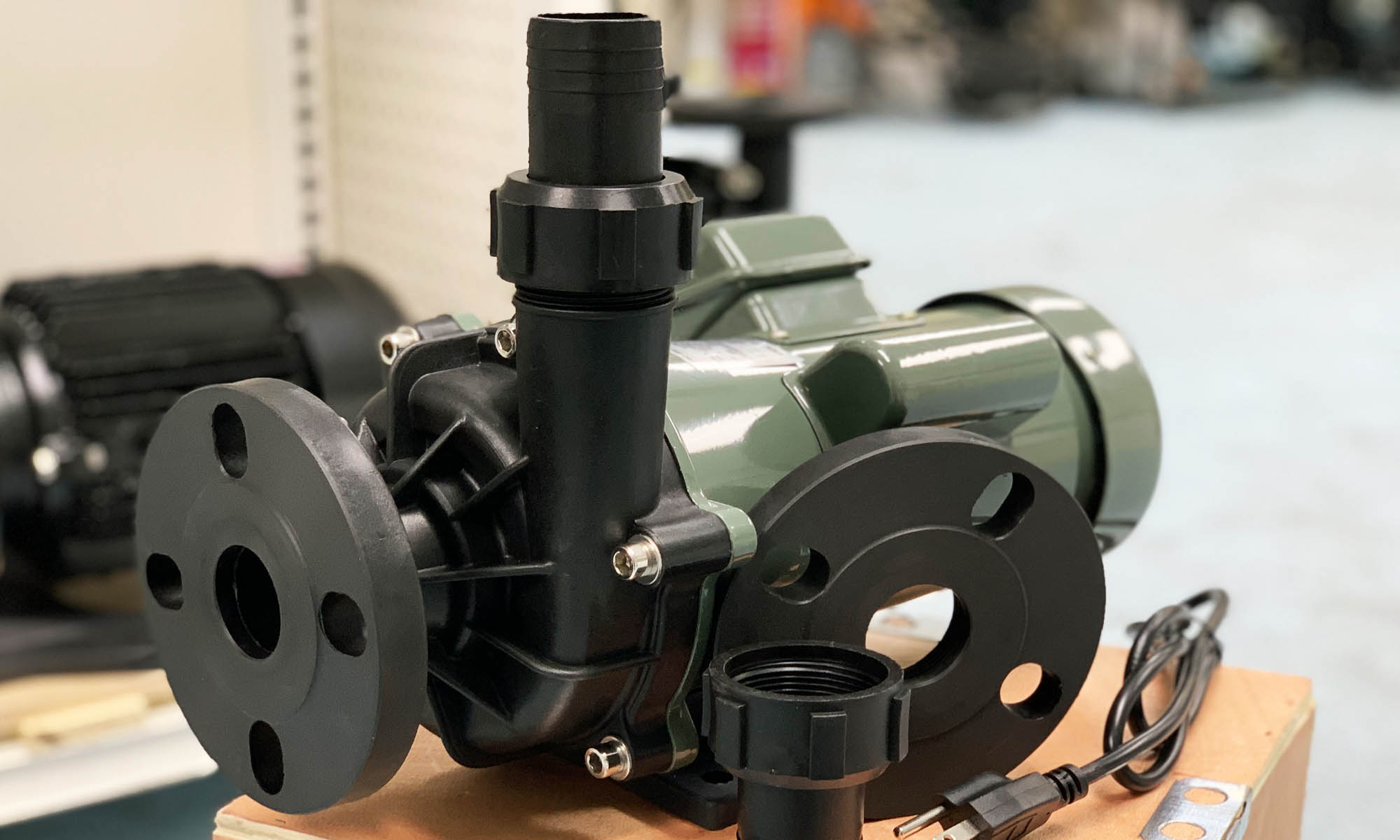

In these models, a standard threaded flange is used, This pump can be used both with a flange and with a BSPT threaded outlet
