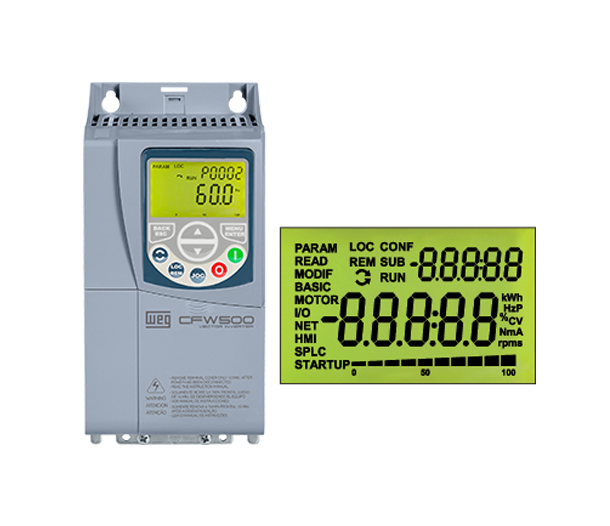

WEG DRIVE, 200-240V, 3Ph, IP66 Model CFW500A16P0T2DB66G2

Product features

Power supply	200-240 V
Input phases	Three-phase
Configuration	With options
Rated current (ND)	Not applicable
Rated current (HD)	16 A
RFI filter	Without filter
Enclosure	IP66
Dynamic braking	Standard with braking
Safety Stop	Prepared to install the accessory CFW500-SFY2
Electronic supply	Not Available

Description

Output current from 1,0 a 33 A (0 0,33 to 20 cv, 33 to 20 cv);
Single-phase or three-phase supply voltage 200-240 V or 380-480 V;
Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM);
Selectable plug-in modules;
Plug and Play philosophy;
Built-in operating and programming interface (HMI);
Pump Genius: functions dedicated to driving pumps;
Safety Function: STO and SS1 level SIL 3 / PLe;
SoftPLC – built-in PLC functionalities;
Braking IGBT (incorporated for all models);
Protection ratings;
Models with optional built-in disconnector for power isolation;
Internal RFI filter (optional);
USB communication port (CFW500-CUSB accessory);
Free WLP and WPS programming software application available at Softwares.

Control method – induction motor	V/f, VVW, Sensorless, Encoder and VVW PM
Rated efficiency	≥ 97%
Link Inductor	No
Conformal Coating	3C2 (IEC 60721-3-3:2002)
SoftPLC	Yes, incorporated
Temperature	-10 °C a 40 °C
USB port	Only with plug-in
Memory card	Not included in the product
I/O standard	4 x DI; 1 relé NA/NF e 1 transistor x DO; 1 x AI; 1 x AO.
Safety Stop	Prepared to install the accessory CFW500-SFY2
Display	Numeric LCD

Brand	WEG
