Description

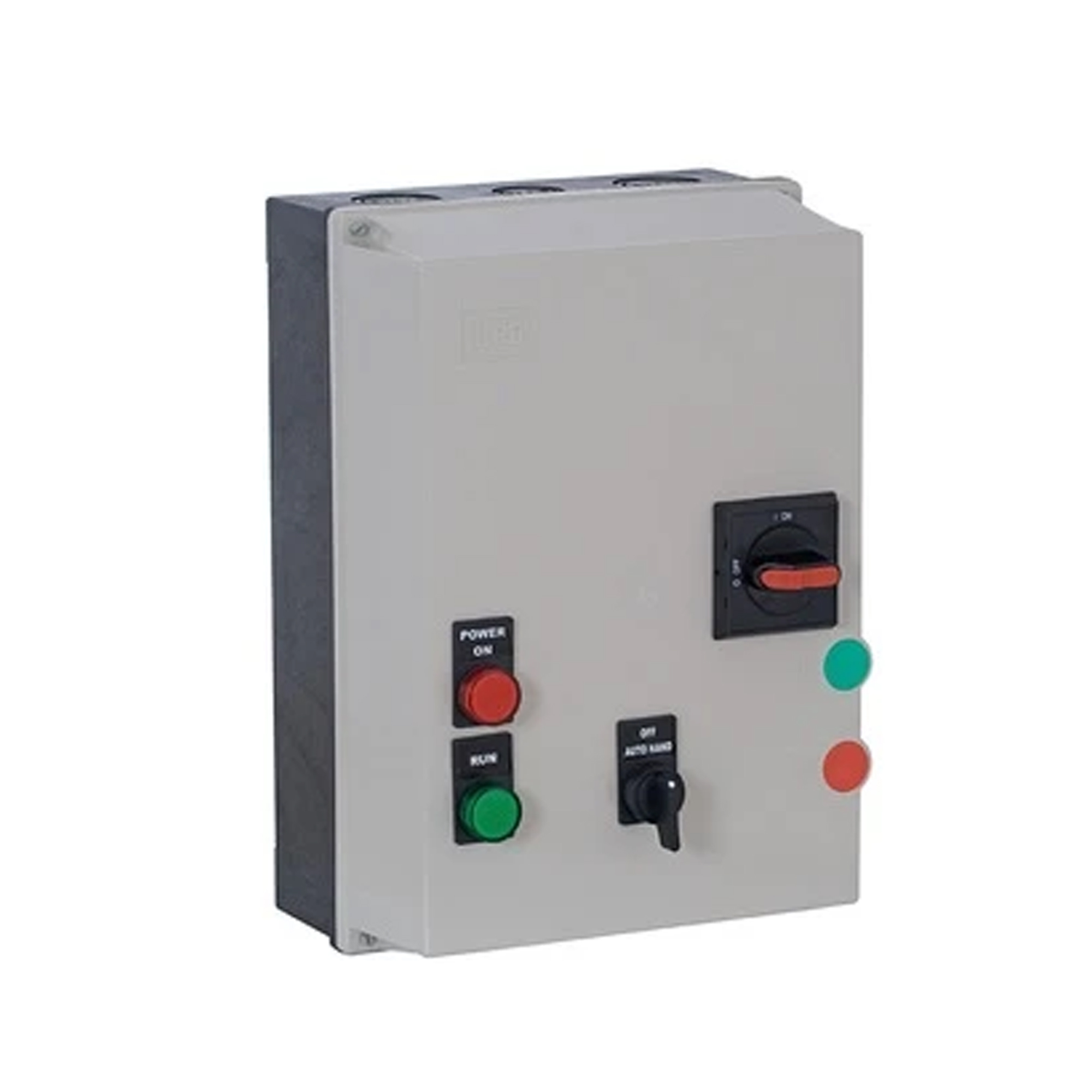

ESWE Series Combination Starters
High performance and optimized solutions for motor starting and control. WEG offers full voltage nonreversing combination starters, ESWE series, up to 20 HP at 460VAC (40A) with or without control power transformers for three-phase applications.
Standard Features
- Standard Enclosure Type: non-metallic 4X
- Control Power Transformer: with or without
- CPT primary 575V – secondary 120V
- CPT primary 480V/240V – secondary 120V
- Branch Disconnect: rotary through-the-door handle
- Short-Circuit Protection: manual motor protection
- Motor Control: magnetic IEC contactor
- Overload Protection: manual motor protection
- Standard Control Devices: HAND-OFF-AUTO switch, START and STOP pushbuttons, pilot lights
- Custom enclosure and control options available upon request
Start Type | Direct Three-phase |
---|---|
Maximum Power Rating | Not applicable |
Rated operational voltage | Ue<=440V |
Control voltage | 180-208V50HZ/208-240V60HZ |
Control devices | H-O-A+On+Off+Mr+Signal Switch |
Degree of protection | TYPE4X |
Starters Complements | Does Not Contain |
Rated current (AC-3) | 9A (CWB9) |
Overload relay | 2.5-4 A (MPW40) |
Measuring tool and accessories | Not Applicable |
Button type | Unspecified |
Button color | Not Specified |
Connection Type | Not Applicable |
