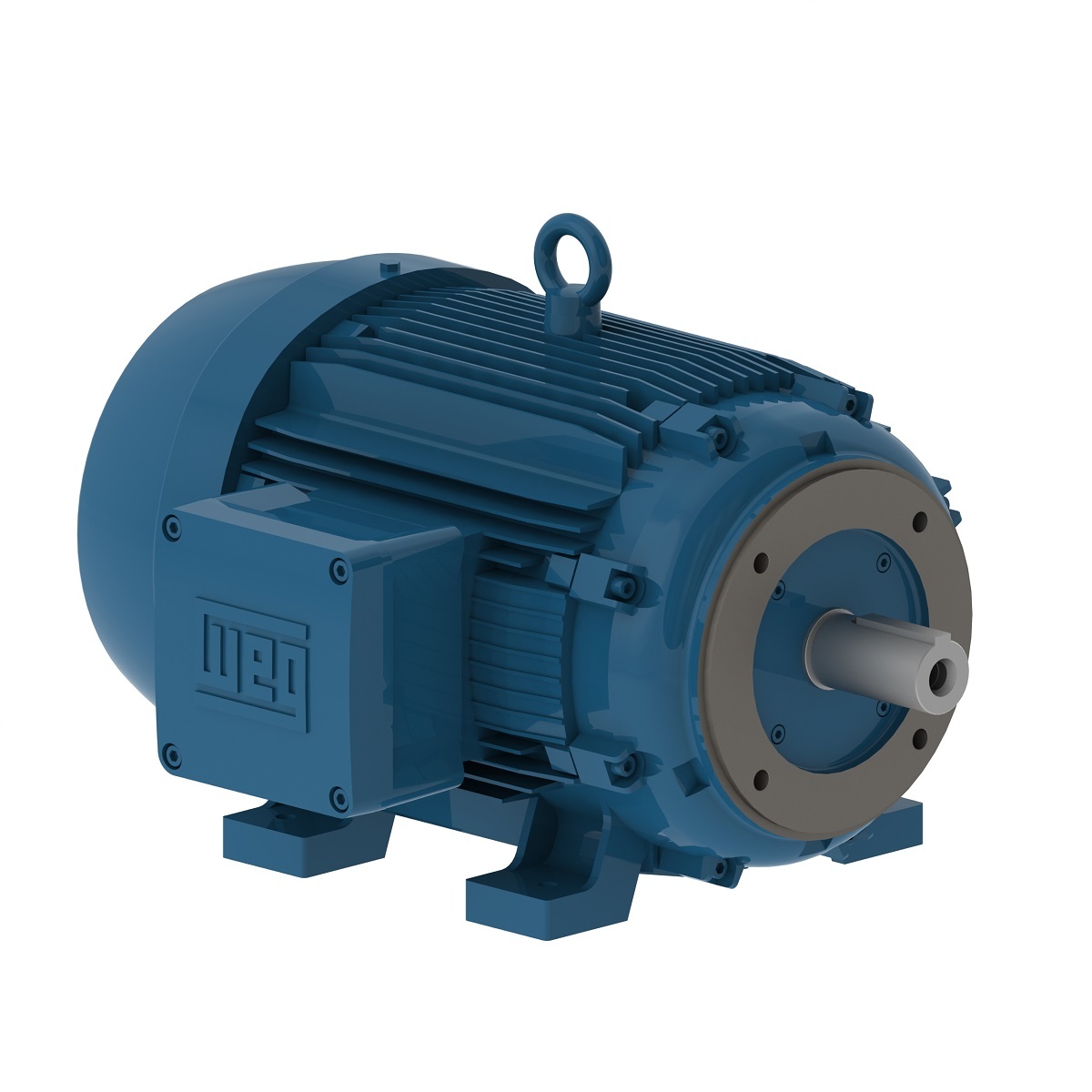

WEG Motor W21 Explosion Proof NEMA Premium Efficiency – 10HP, 230/460V – 3Ph, 60Hz, 3525RPM, TEFC, Foot-mounted, Model: 01036XT3E215TC

5/5

Write a Review

WEG Motor W21 Explosion Proof NEMA Premium Efficiency – 10HP, 230/460V – 3Ph, 60Hz, 3525RPM, TEFC, Foot-mounted, Model: 01036XT3E215TC

Free Shipping
SKU 5160600 Categories , , Tags , ,

Additional information

Brand

WEG
AC Voltage

230 volts, 460 volts
Horsepower

10
Phase

Three Phase
Material

Cast Iron
RPM

3600
Explosion Proof

Yes

$1,601.99

WEG Explosion proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC411 – TEFC

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

V-Ring Seal

V-Ring Seal to avoid the liquids and dust inlet in the motor.

Capacitor

With runner capacitor, runner and permanent capacitor or permanent capacitor.

Cooling System

• The cooling system (fan, non-drive end shield and fan cover) is designed to minimize noise level and improve thermal efficiency.
• Steel plate fan cover provides high mechanical strength, corrosion resistance and extended lifetime.

Cast Iron Frame

• FC-200 (EN GJL 200) cast iron frames meeting impact level IK08 (5J) ensuring superior mechanical strength for the most demanding applications.
• Solid motor feet providing excellent rigidity, allowing easier alignment and installation.

Centrifugal Switch

The starting system of W21 three phase motors was completely redesigned to improve functionality, thus increasing system reliability and lifespan.

Technical Data

Brand WEG
Frame 213/5TC
Output 10 HP
Number of Poles 2
Frequency 60 Hz
Rated Speed 3525 rpm
Slip (%) 2.08
Rated Voltage (V) 230/460
Rated Current (A) 23.4/11.7
L. R. Amperes (A) 161/80.7
LRC (A) 6.9x (Code H)
No load Current (A) 7.20/3.60
Rated Torque (ft.lb) 14.9
Locked Rotor Torque (%) 210
Breakdown Torque (%) 280
Locked Rotor Time 54s (cold) 30s (hot)
Moment of Inertia (J) 0.5512 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 72.0 dB(A)
Approx. Weight (lb) 208

Efficiency

50% 75% 100%
88.5 90.2 90.2

Power Factor

50% 75% 100%
0.79 0.87 0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1″
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 – C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Bearing cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Screw Cap Stainless Steel AISI 316L
Fan material Plastic

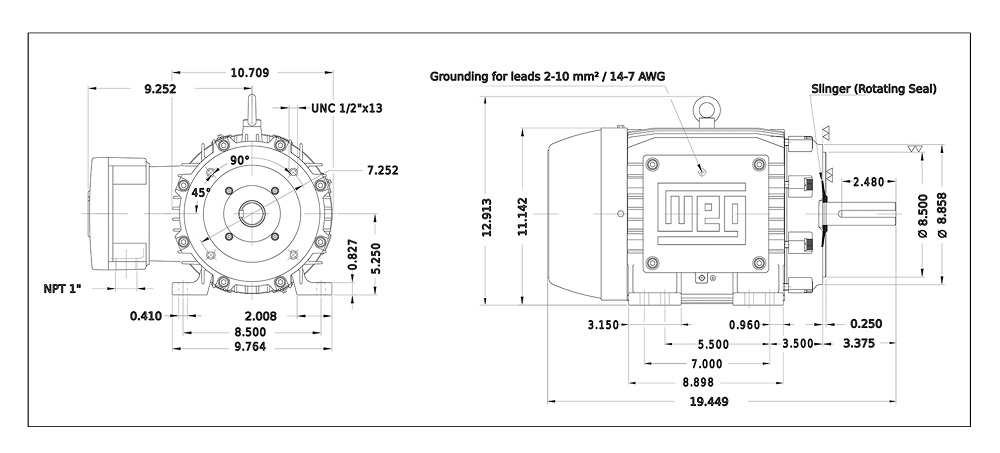

Dimensions

Additional information

Brand

WEG
AC Voltage

230 volts, 460 volts
Horsepower

10
Phase

Three Phase
Material

Cast Iron
RPM

3600
Explosion Proof

Yes
