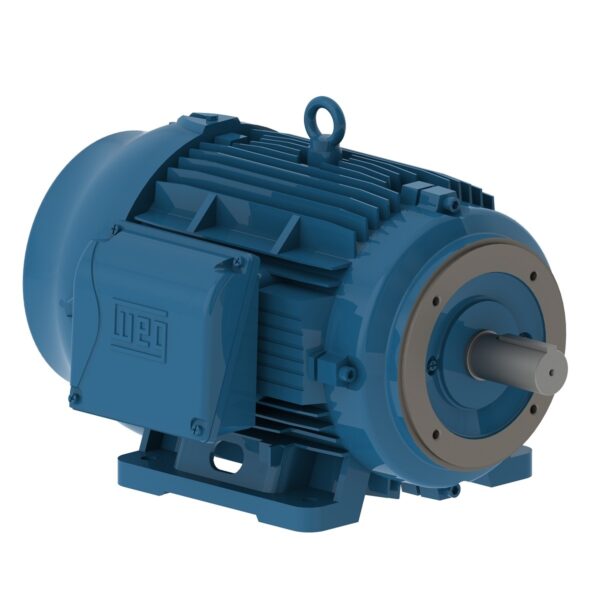

WEG Motor W22 – 50HP, 230/460V – 3Ph, 60 Hz, 3560RPM, TEFC, Foot-mounted, Model 05036ET3E326TSC-W22

5/5

Write a Review

WEG Motor W22 – 50HP, 230/460V – 3Ph, 60 Hz, 3560RPM, TEFC, Foot-mounted, Model 05036ET3E326TSC-W22

Free Shipping
SKU 5160360 Categories , , Tags , ,

Additional information

Brand

WEG
AC Voltage

230 volts, 460 volts
Horsepower

50
Phase

Three Phase
Material

Cast Iron
RPM

3600
Explosion Proof

No

$4,214.99

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 50 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC411 – TEFC

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

V-Ring Seal

V-Ring Seal to avoid the liquids and dust inlet in the motor.

Capacitor

With runner capacitor, runner and permanent capacitor or permanent capacitor.

Cooling System

• The cooling system (fan, non-drive end shield and fan cover) is designed to minimize noise level and improve thermal efficiency.
• Steel plate fan cover provides high mechanical strength, corrosion resistance and extended lifetime.

Cast Iron Frame

• FC-200 (EN GJL 200) cast iron frames meeting impact level IK08 (5J) ensuring superior mechanical strength for the most demanding applications.
• Solid motor feet providing excellent rigidity, allowing easier alignment and installation.

Centrifugal Switch

The starting system of W22 three phase motors was completely redesigned to improve functionality, thus increasing system reliability and lifespan.

Technical Data

Brand WEG
Frame 324/6TSC
Output 50 HP
Number of Poles 2
Frequency 60 Hz
Rated Speed 3560 rpm
Slip (%) 1.11
Rated Voltage (V) 230/460
Rated Current (A) 112/56.1
L. R. Amperes (A) 707/353
LRC 6.3x (Code G)
No load Current (A) 28.0/14.0
Rated Torque (ft.lb) 73.8
Locked Rotor Torque (%) 240
Breakdown Torque (%) 240
Locked Rotor Time 36s (cold) 20s (hot)
Moment of Inertia (J) 5.75 sq.ft.lb
Insulation Class F
Service Factor 1.25
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 76.0 dB(A)
Approx. Weight (lb) 559

Efficiency

25% 50% 75% 100%
0.0 93.0 93.0 93.0

Power Factor

25% 50% 75% 100%
0.0 0.81 0.87 0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 2″
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 – C3)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Bearing cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Screw Cap Carbon Steel SAE 1010/20
Fan material Plastic

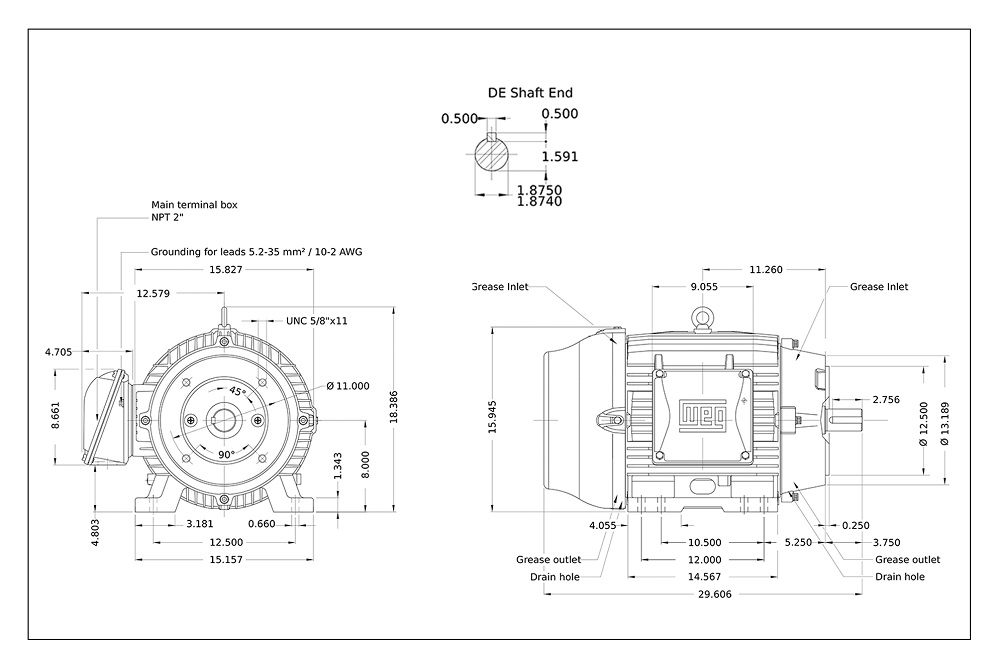

Dimensions
