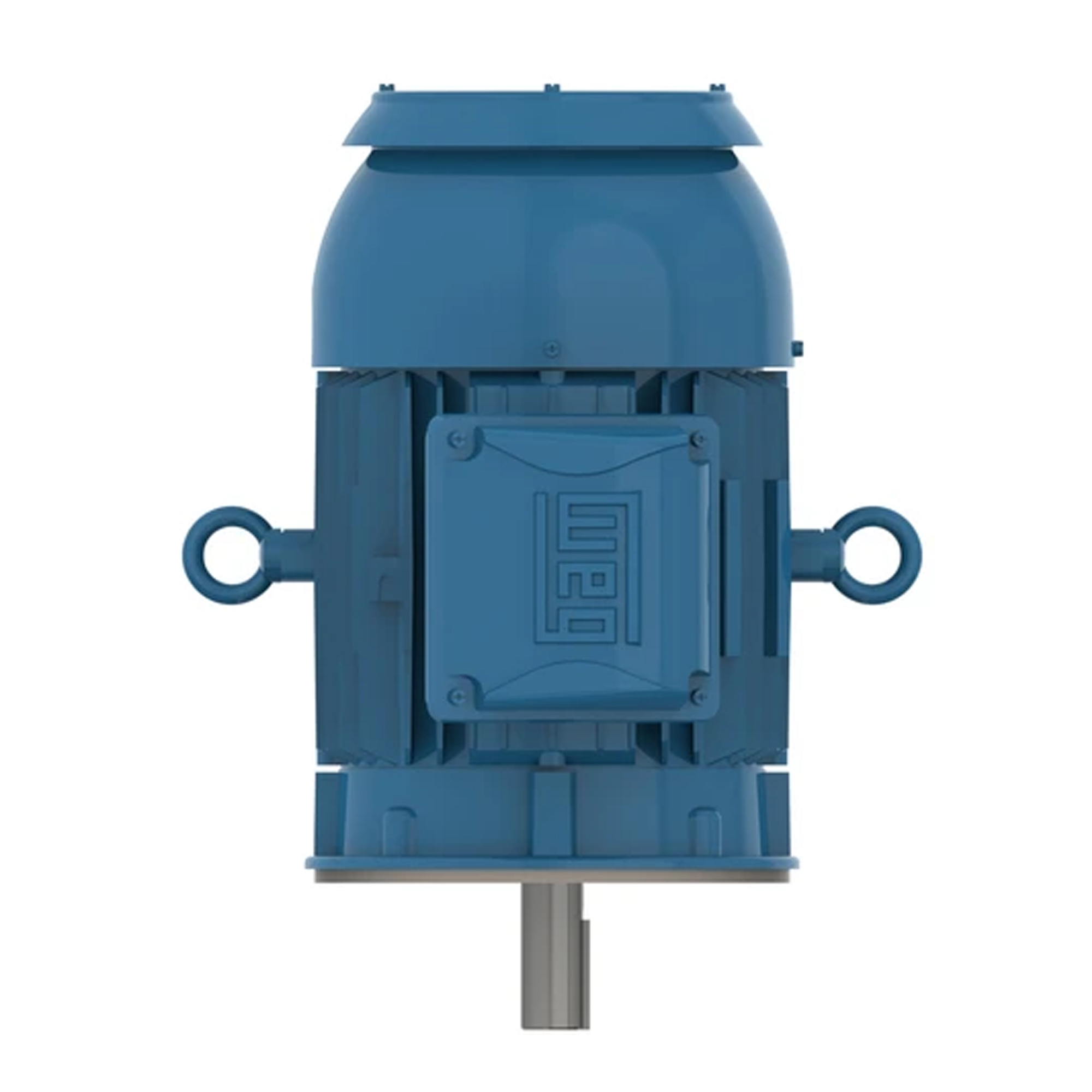

WEG NEMA Premium Efficiency 7.5HP, 230/460//380V – 3Ph, 1800RPM, IC411 – TEFC – Footless, Model 00718ET3ER213TC-W22
5/5
WEG NEMA Premium Efficiency 7.5HP, 230/460//380V – 3Ph, 1800RPM, IC411 – TEFC – Footless, Model 00718ET3ER213TC-W22
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 230/460 volts, 380 volts |
| Horsepower | 7.5 |
| Phase | Three Phase |
| Material | Cast Iron |
| RPM | 1800 |
| Explosion Proof | No |
Unit Price
$938.99
With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 7.5 HP |
| Mounting | Footless |
| Flange | C |
| Mounting | W-6 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
Technical Data
Technical Data
| Frame | 213TC |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 18.4/9.18 A |
| L. R. Amperes | 130/65.2 A |
| LRC | 7.1x(Code H) |
| No load current | 8.40/4.20 A |
| Rated torque | 22.3 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 310 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 1.34 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 164 lb |
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 230/460 volts, 380 volts |
| Horsepower | 7.5 |
| Phase | Three Phase |
| Material | Cast Iron |
| RPM | 1800 |
| Explosion Proof | No |
