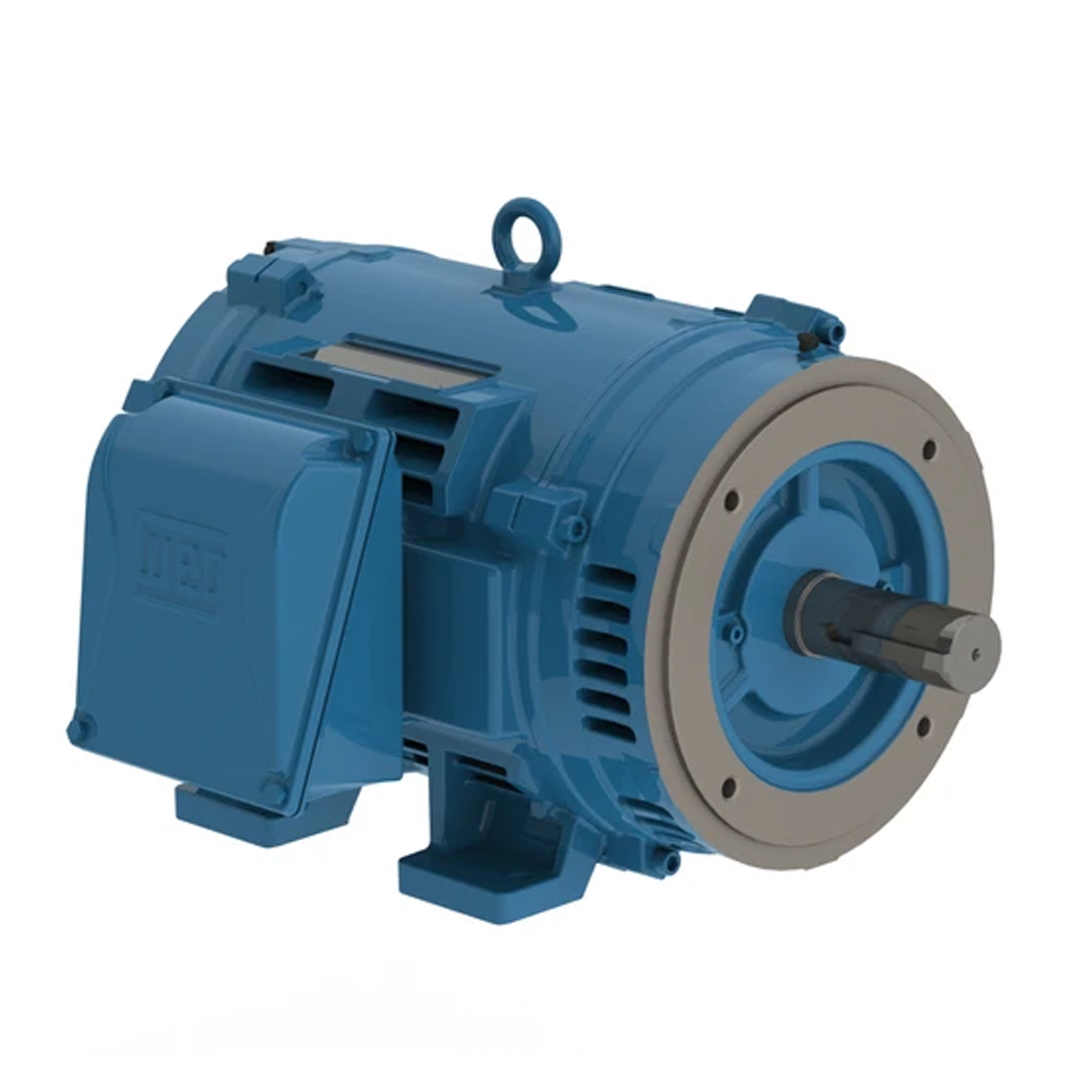

WEG W40 NEMA Premium Efficiency – 40HP, 230/460//380V – 3Ph, 3600RPM, IC01 – ODP – Foot-mounted, Model 04036OT3E286TSC-W40
5/5
WEG W40 NEMA Premium Efficiency – 40HP, 230/460//380V – 3Ph, 3600RPM, IC01 – ODP – Foot-mounted, Model 04036OT3E286TSC-W40
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 230 volts, 380 volts, 460 volts |
| Horsepower | 40 |
| Phase | Three Phase |
| Material | Cast Iron |
| RPM | 3600 |
| Explosion Proof | No |
Unit Price
$2,707.99
The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 2 |
| Degree of Protection | IP23 |
| Synchronous speed | 3600 rpm |
| Output rating | 40 HP |
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC01 – ODP |
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
Technical Data
Technical Data
| Frame | 284/6TSC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3540 rpm |
| Slip | 1.67 % |
| Rated voltage | 230/460 V |
| Rated current | 93.7/46.8 A |
| L. R. Amperes | 609/304 A |
| LRC | 6.5x(Code G) |
| No load current | 30.8/15.4 A |
| Rated torque | 59.3 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 2.02 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 347 lb |
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 230 volts, 380 volts, 460 volts |
| Horsepower | 40 |
| Phase | Three Phase |
| Material | Cast Iron |
| RPM | 3600 |
| Explosion Proof | No |
